We are Kinetic Polymers
We’re Helping Industries
OUR EMI SHIELDING PRODUCTS

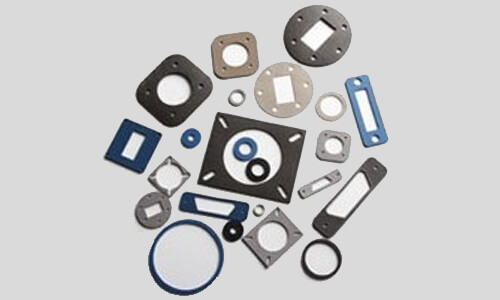

- Conductive elastomer gaskets

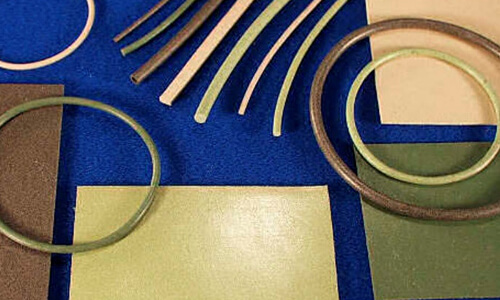

- Composite emi / non-emi gaskets

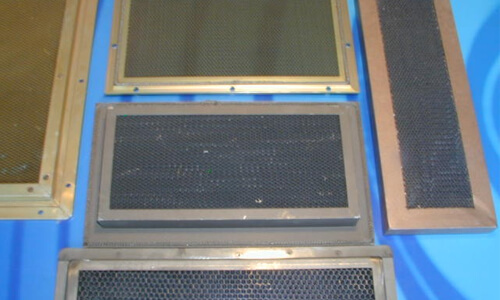

- Honey comb air vent panels
- Slim type air vents

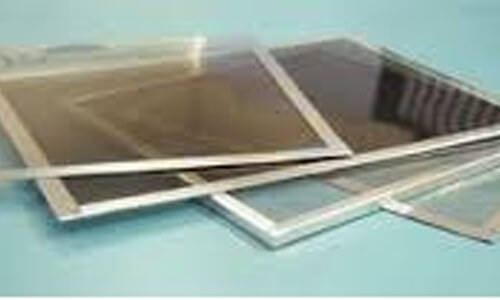

- Emi shielding windows
- Emi shielding Gaskets
- Emi shielding Aluminium Honeycomb
- Metal impregnated gaskets

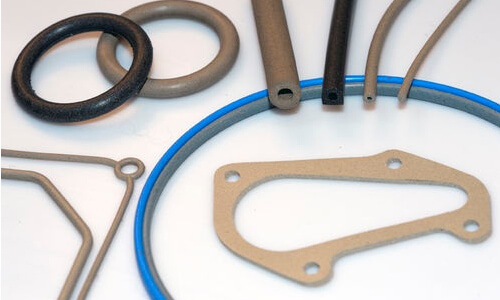

- Wire embedded rubber gaskets

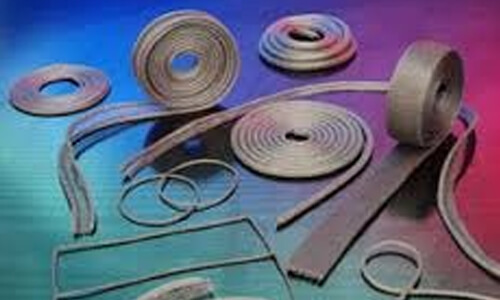

- Knitted wire mesh tapes

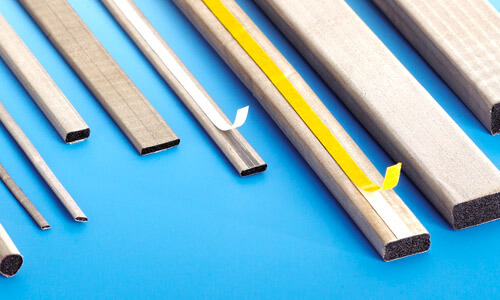

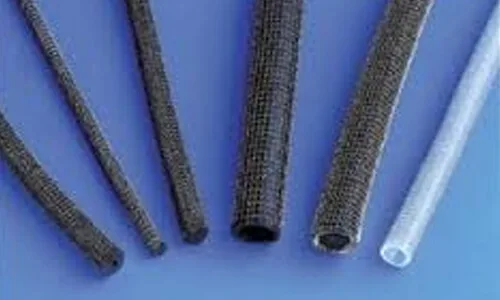

- Wire mesh on elastomer core

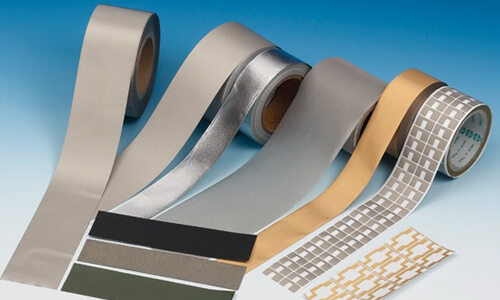

- Conductive foil tapes

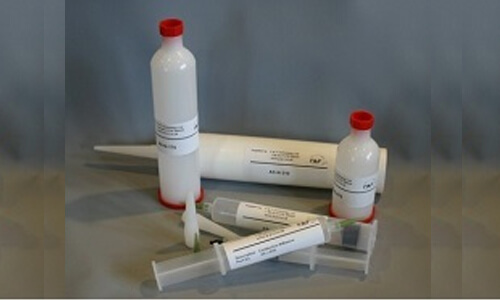

- Conductive adhesives
- Conductive putty

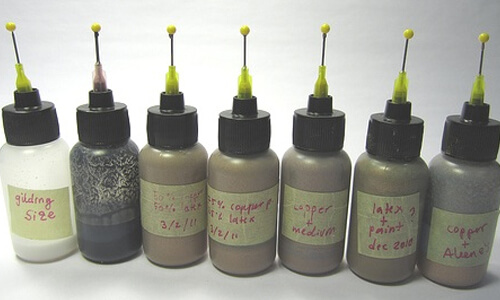

- Conductive paint

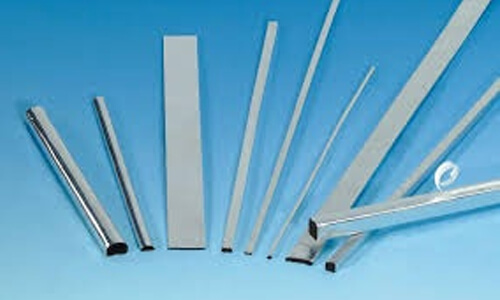

- Conductive fabric gaskets
OUR NON-EMI RUBBER PRODUCTS
- EPDM EXTRUSIONS
- SILICONE RUBBE EXaTRUSIONS
- NEOPRENE EXTRUSIONS
| Conductive Particles | Carbon | Nickel Graphite | Silver Class | Silver Nickel | Silver Aluminum | Silver Copper | Silver Low Density |
|---|---|---|---|---|---|---|---|
| MIL-G-83528 Type | N/A | N/A | M | L | B, D | A, C, K | J |
| Operating Temperature Min (ºC) Max (ºC) | -55175 | -55200 | -55200 | -55180 | -55200 | -55125 | -55160 |
| Specific Gravity | 1.2 | 1.95 | 1.8 | 4 | 2 | 3.5 | 1.7 |
| Hardness (Shore A) Durometer | 70 | 70 | 65 | 75 | 65 | 65/75/85 | 45 |
| Compression Deflection (% min) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 8 |
| Tensile Strength (lbs/sq-in) | 450 | 150 | 200 | 200 | 200 | 200 | 150 |
| Elongation (%) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 8 |
| Volume Resistivity (ohm-cm) | 8 | 0.1 | 0.005 | 0.005 | 0.008 | 0.004 | 0.001 |
| Shielding Effectiveness (20mhz-10ghz) | 40 | 80 | 110 | 100 | 110 | 110 | 80 |
| EMP survivability | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
